What It Does
The Take Off Report gives you precise roof measurements without the manual workload. It helps you:
- ●Calibrate scale accurately on complex roofs
- ●Draw and label every ridge, valley, gutter, and flashing
- ●Apply pitch for true roof surface calculations

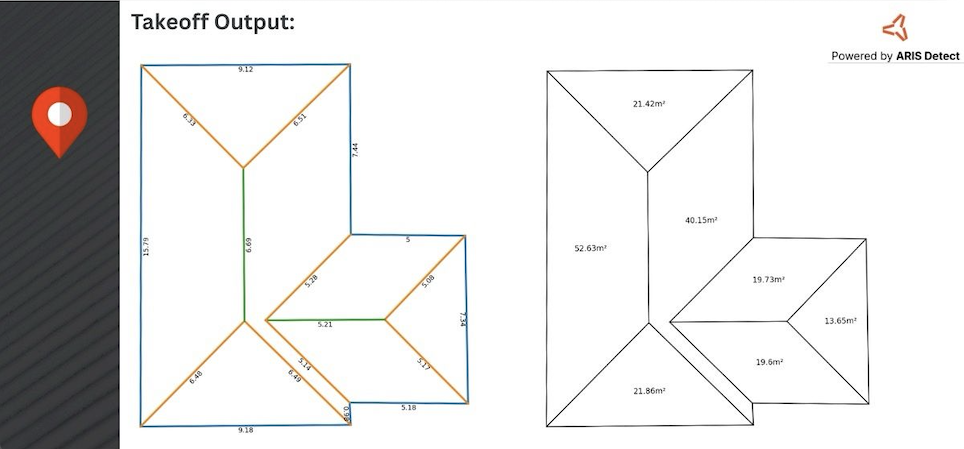

Once complete, the data is compiled into a professional, branded PDF ready for quoting, insurance submission, or material ordering.
How It Works

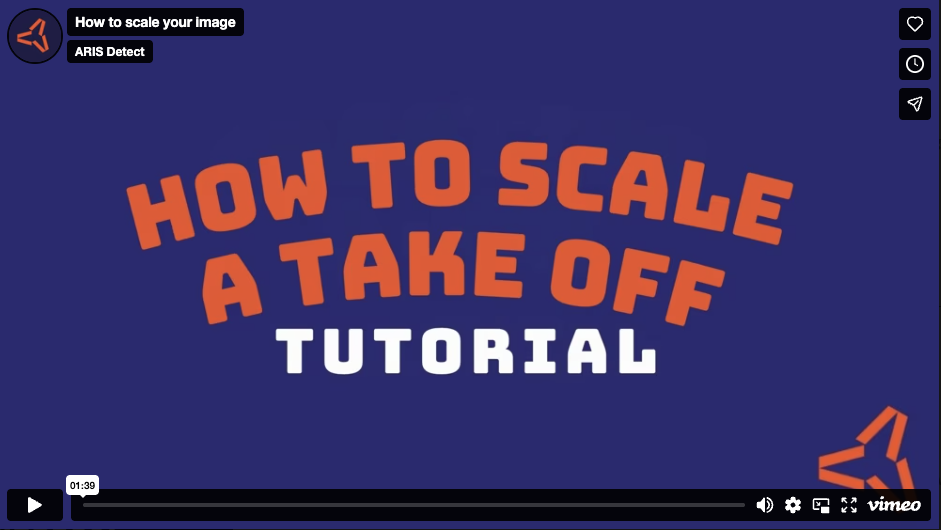

Our new screen-capture tutorial videos walk users through the full process, from calibration to completion. Prefer to watch than read? The full Take Off video walkthroughs cover every step end to end.
Step 1: Setting Scale
When starting a take-off, you will use two scale tools on the right side of your screen: Ridge Scale and Gutter Scale. Because these parts of the roof sit at different heights, ARIS Detect uses a dual-scale system to achieve superior accuracy.
Adjust the scale using three intuitive controls: the Blue Dot moves the scale, the Green Dot rotates it to match the sheet angle, and the Red Dot adjusts rib spacing.
You can extend the scale for higher precision or enter a custom scale if you know an exact real-world measurement. Once both scales are set, your take-off is perfectly calibrated for measurement.
Step 2: Drawing Linework

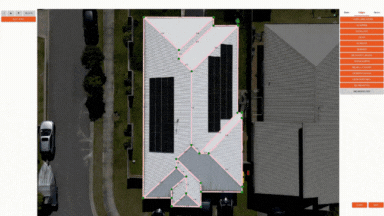

Select Draw from the toolbar and trace the roof perimeter. Then draw gutters, ridges, valleys, and flashings.
You can easily adjust lines with the Drag Tool or remove them entirely using Delete All. The interface is designed to keep your tracing clean and accurate.
Step 3: Labelling Lines
Next, open the Edges Tab and use the Auto Line Labeller. It automatically identifies and labels most lines for you. If anything needs adjusting, simply select the correct label and click on the line to apply it manually.
Step 4: Applying Roof Pitch

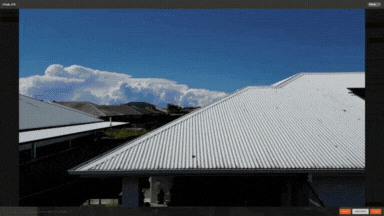

Upload an image of the hip in the Faces Tab and use the Pitch Finder to draw a short line across it. The pitch is calculated automatically and can be applied to all faces or entered manually if preferred.
Built for the Real World
The Take Off Report was designed for how professionals actually work.
- ●Insurance builders can generate accurate, compliant reports faster.
- ●Roof inspection companies can produce data-backed take-offs from drone captures.
- ●High-volume insurance claim roof specialists can deliver ready-to-quote documentation minutes after landing.
It saves hours of manual tracing and removes uncertainty from quoting and estimation.
Watch the Walkthroughs
See it in action in our new step-by-step video tutorials. Learn how to set scale, draw lines, label, and apply pitch to produce a fully verified take-off report. Watch the walkthrough and try it today →
The Future of Roof Measurement
This release is only the beginning. ARIS Detect will continue developing deeper automation, integrated materials estimators, and predictive tools for labour and waste forecasting.
We are redefining how roof inspections are done across the insurance and construction industries. Want a guided tour first? Watch the tutorials.
Accurate. Fast. Reliable.
